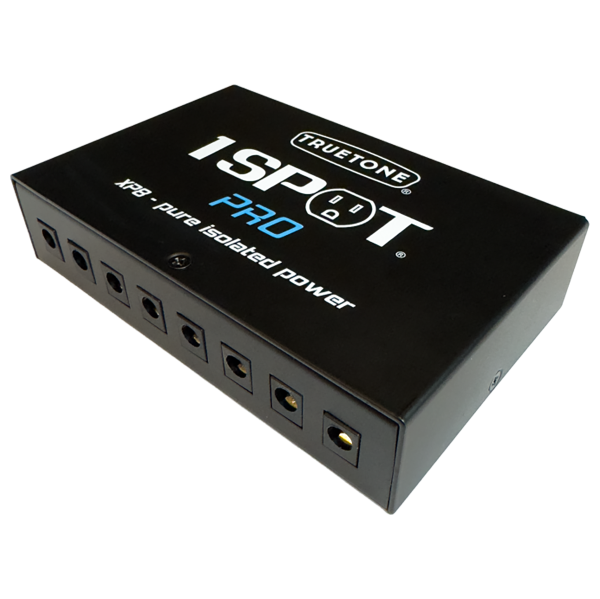

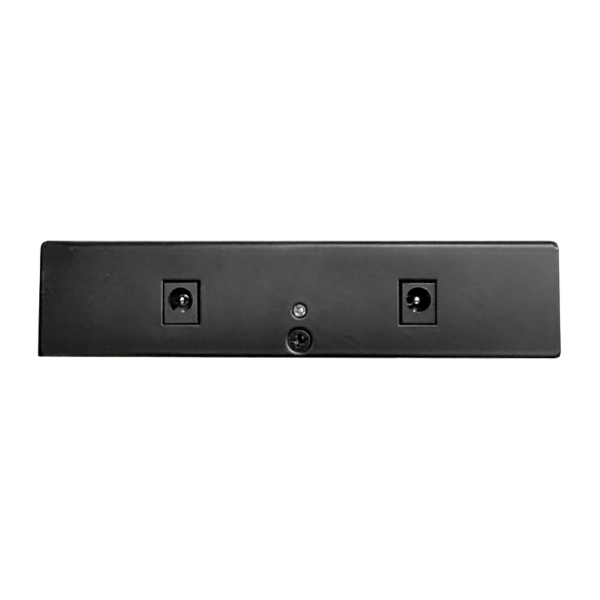

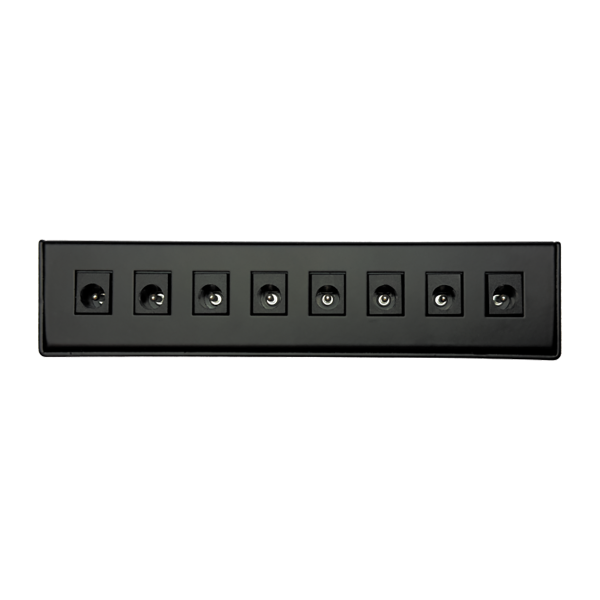

Product Description Product Specs/Additional Information Related Videos Audio Product Description The 1 Spot Pro XP8-PS is just like the XP5-PS, except it has 8 outputs instead of 5. Each output provides 9Vdc of studio-clean power and can handle at least 500mA of current draw per output. Measuring 133x88x30mm (5.24×3.46×1.18”) and weighing only 459 grams (16.19oz or about 1lb), it can be easily attached to a pedalboard using only Vel-Cro. Because of its low profile, the XP8 can be mounted under most pedalboards, or be used as a pedal riser on top of a board. With 2 linked input jacks, you can power a second XP8 or XP5 by simply connecting a DC cable. Product Specs/Additional Information 1 SPOT Technology… what does that mean and why should I care? Technically, it’s switching power supply technology, which is very different than what anyone has ever put inside a power brick. Normally, you would find just a big transformer and a handful of small electronic components inside a power brick… old tech that hasn’t changed in decades and has a lot of limitations. We took the same triple filtered switching power supply technology found in our famous 1 SPOT and scaled it up to make the 1 SPOT Pro models. With much more space to work with, we were able to completely eliminate noise, provide total electrical isolation between outputs, create multiple voltages, and still give you the ability to use it anywhere in the world.A major benefit of using a switching power supply is that it can handle far more current (power being pulled out of it) than any transformer-based power supply. Although we had to put power rating labels on each output to satisfy certification agencies (yes, we actually certified these, unlike many companies), the outputs can generally handle far more than the label shows. For example, you can connect a 300mA pedal to a 200mA output, without causing any problems. With a transformer-based power supply, you can’t get away with that. The important thing is to not exceed the total of all the labels. With a CS7 (for example), the output labels add up to 1900mA total. That means the total current draw of all your pedals should be less than 1900mA.We recognize that not all guitar pedals run off 9V. That’s why all 1 SPOT Pro models have outputs that can put out 9Vdc, 12Vdc or 18Vdc. The CS12 even has a variable voltage output for old-style fuzz pedals, and a 9Vac output for certain Line6 and Digitech pedals. And if you need to change the voltage of an output, Truetone also makes inexpensive converter cables to help you. There’s the Voltage Doubler, which does exactly what its name says, and the 18V to 9V Converter… which also does what its name says. They don’t have the most clever names, but they get the job done!Just like with the original 1 SPOT, (and your laptop power supply and phone charger), the 1 SPOT Pro uses switching power supply technology which allows you to use it anywhere in the world. The 1 SPOT Pro won’t leave you stranded at your first international gig!If you’re a touring musician, or even if you just play at the local pub regularly, you know how important it is to have road-worthy gear. No worries with the all-steel housing of the 1 SPOT Pro.Since pioneering the first switching power supply for musicians, the original 1 SPOT, we’ve gained many years of experience in creating very low noise power for pedals. When we started designing the 1 SPOT Pro, the first multiple output switching power supply, we worried a lot about how to eliminate noise completely. Isolation is part of the solution to noise elimination, but not all of it. Each output is galvanically isolated from the other to help give you pure, clean, noise-free operation of your pedals. However, we also provided an additional layer of pure analog regulation, taking advantage of the greater ability of analog circuits to provide the highest possible suppression of in-band audio noise. There is an artistry involved in these designs, and it’s come at the price of decades of hard work. But all of this put together is what we call Pure Isolation. Related Videos Audio
